ASR114C
1U 350mm Front MB I/O Server

Chassis

Revolsys 1U Half-Size Front I/O Access

Server Grade Rackmount Chassis with

2 x 3.5" HDD Hotswapable Bay

Features & Benefits

● Support standard micro ATX and Mini ITX MB (optimized design for Asus P7F-M MB)

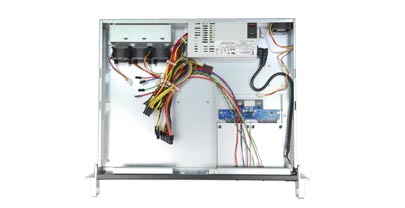

● 3 high speed 4028mm axial fans with

anti-vibration Design + 1 4020mm fan

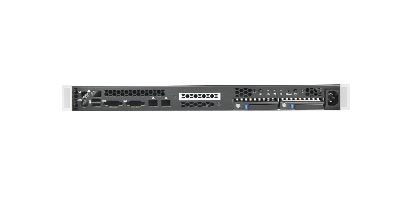

● Front MB I/O and AC power inlet

● 2 x 2.5” hot swappable SAS/SATA HDD

● Single 300W flex ATX PSU>

● 350mm Depth

Specifications

Material

Form Factor

Power Supply

Drive Capacity

Cooling Fan

LED Indicators

Expansion Slots

Buttons

Dimensions (DxWxH)

Heavy Duty SGCC Sheet Metal

1U Chassis, Supports Micro ATX /Mini ITX MB

Single 300W Flex ATX PSU

2 x 2.5" Hot Swappable SAS/SATA2 HDD

3 x 4028 fans + 1 x 4020 fan

Power on, HDD

1 x low profile PCIE card optional

Power, Reset

350mm x 430mm x 44mm
