asr116_revolsys

ASR116

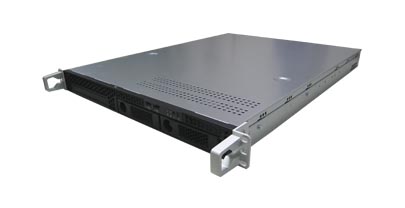

1U Rackmount Server Chassis

Revolsys 1U Full Size Server Grade

Rackmount Chassis With 6 High

Efficient Thermal Fans

Features & Benefits

● Supports ATX/CEB MB

● Up to 6 x 4028mm or 4056mm fans
● HDD tray with key lock optional

● Single or redundant PSU optional
● 2 x 3.5” HS SAS/SATA2 HDD bays
● 1 x Slim DVD Drive Bay

Specifications

Material

Form Factor

Power Supply

Drive Capacity

Cooling Fan

Front I/O Ports

LED Indicators

Buttons

Expansion Slots

Dimensions (DxWxH)

Heavy Duty Metal

1U Chassis, Supports ATX/CEB MB

Single or Redundant 1U PSU Optional

2 x 3.5" Hot Swappable SAS/SATA2 HDD
1 x DVD Drive Bay

40 x 40 x 28mm or 40 x 40 x 56 Fan, up to 6 pcs

2 x USB

Power on, HDD, LAN x 2

Power, Reset

1 x Full Height Slot via Riser Card

593mm x 430.5mm x 44mm
