ASR140

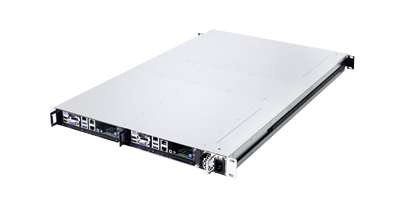

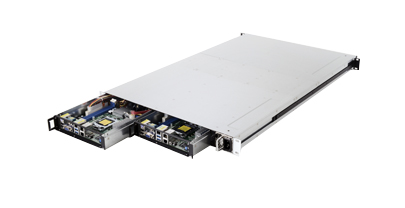

1U Chassis with 4 Compute Blades

Revolsys 1U High Desity Quad Mini-ITX Computing Servers Rackmount Chassis

Features & Benefits

● 1U rackmount chassis supports mini-ITX motherboard

● Supports 4 compute blades

● 1+1 redundant 650W high efficiency PSU (optional)

● High speed 4028mm PWM fans w/

anti-vibration design

● Supports 2 internal 2.5” HDDs in each blade

Specifications

Dimensions

Form Factor

Internal

Model Name

Type

Wattage

Front Control

Indicator

Fan

Material

Thickness

Rail Type

720mm x 444.8mm x 44mm (D x W x H)

Mini-ITX (170mm x 170mm)

8 x 2.5” HDD

3Y Power YM-2651B

1+1 redundant (optional)

650W

Power on & off

Power status / HDD status

8 x Middle fan, 4028mm, PWM

SGCC

0.8mm / 1.0mm

Simple rackmount support bracket
