ASR201
2U Full-size Rackmount Chassis

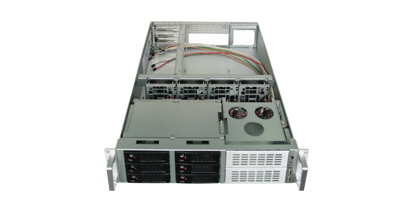

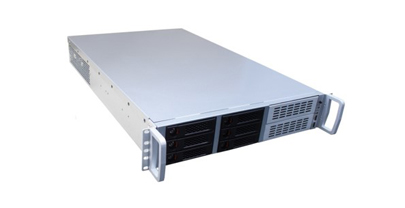

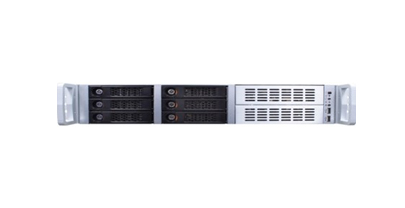

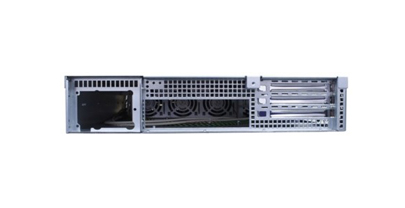

Revolsys 2U Full-Size Server Grade

Rackmount Chassis with 6 x 3.5" HDD Hotswapable Bays

Features & Benefits

● Supports ATX/CEB, EATX/EEB MB

● Up to 4 x 8025mm fans
● HDD tray with key lock optional

● Single or redundant PSU optional
● 6 x 3.5” HS SAS/SATA2 HDD bays
● 2 x 5.25” drive bays

Specifications

Material

Form Factor

Power Supply

Drive Capacity

Cooling Fan

Front I/O Ports

LED Indicators

Buttons

Expansion Slots

Dimensions (DxWxH)

Heavy Duty Metal

2U Chassis, Supports ATX/CEB, EATX/EEB MB

2U Single or Redundant PSU Optional

6 x 3.5" Hot Swappable SAS/SATA2 HDD
2 x 5.25" Drive Bays

80 x 80 x 25mm 4pcs

2 x USB

Power on, HDD, LAN x 2

Power, Reset

3 x Full Height Slots via Riser Card or 7 x Low Profile Slots Optional

670mm x 425mm x 88.5mm
