ASR102
1U Rackmount Chassis

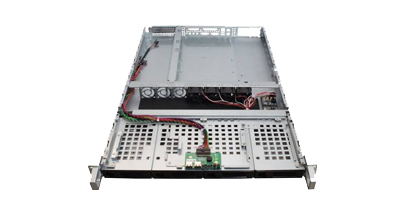

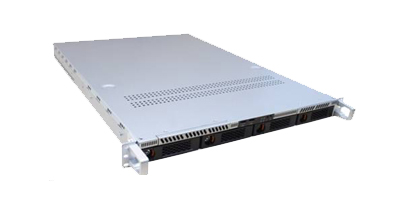

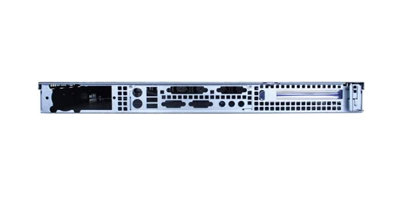

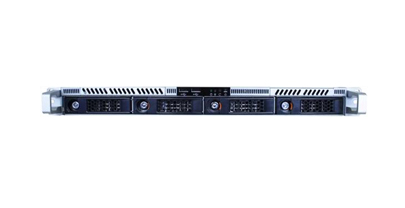

Revolsys 1U Server Grade Rackmount

Chassis Equip With 7 High Efficient

Thermal Fans

Features & Benefits

● Supports ATX/CEB MB

● Up to 7 x 4028mm or 4056mm fans
● HDD tray with key lock optional

● Single 1U PSU
● 4 x 3.5” HS SAS/SATA2 HDD bays
● 1 x slim optical drive, 1x slim FDD

Specifications

Material

Form Factor

Power Supply

Drive Capacity

Cooling Fan

Front I/O Ports

LED Indicators

Buttons

Expansion Slots

Dimensions (DxWxH)

Heavy Duty Metal

1U Chassis, Supports ATX or CEB MB

100mm width 1U PSU

4 x 3.5" Hot Swappable SAS/SATA2 HDD
1 x Slim Optical Drive, 1x Slim FDD

4028mm or 4056mm Fan, up to 7 pcs

2 x USB

Power on, HDD, LAN x 2

Power, Reset

1 x Full Height Slot via Riser Card

600mm x 430mm x 44mm
