asr104_revolsys

ASR104

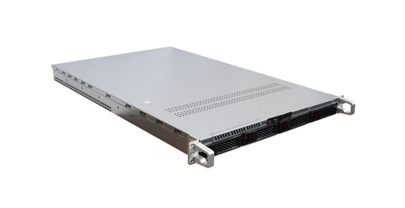

1U Full-size Rackmount Chassis

Revolsys 1U Server Grade Rackmount

Chassis Equip With 7 High Efficient

Thermal Fans

Features & Benefits

● Supports ATX/CEB, EATX/EEB MB

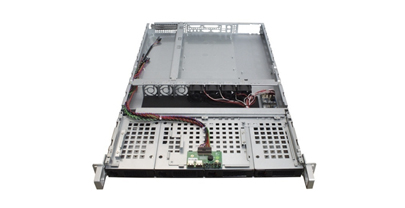

● Up to 7 x 4028mm or 4056mm fans
● HDD tray with key lock optional

● Single or redundant PSU optional

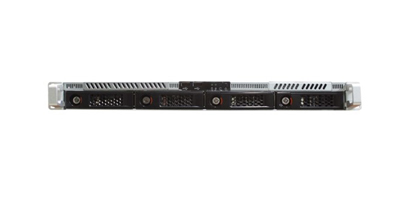

● 4 x 3.5” HS SAS/SATA2 HDD bays
● 1 x slim optical drive, 1x slim FDD

Specifications

Material

Form Factor

Power Supply

Drive Capacity

Cooling Fan

Front I/O Ports

LED Indicators

Buttons

Expansion Slots

Dimensions (DxWxH)

Heavy Duty Metal

1U Chassis, Supports ATX/CEB, EATX/EEB MB

Single or Redundnat 1U PSU Optional

4 x 3.5" Hot Swappable SAS/SATA2 HDD
1x Slim Optical Drive, 1 x Slim FDD

4028mm or 4056mm Fan, up to 7 pcs

2 x USB

Power on, HDD, LAN x 2

Power, Reset

1 x Full Height Slot via Riser Card

670mm x 430.5mm x 44mm
