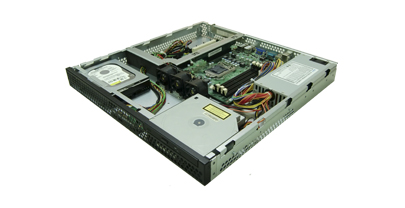

ASR106
1U Entry Server Chassis

Revolsys 1U Short Depth Industrial

Grade Heavy Duty Rackmount Chassis

Features & Benefits

● Support standard ATX or micro ATX MB (optimized design for MSI-96D2 MB)

● 3 high speed 4028mm axial fans with
anti-vibration design

● Single 300W flex ATX PSU
● 2 x 3.5” internal HDD bays
● 1 x slim optical drive bay

Specifications

Material

Form Factor

Power Supply

Drive Capacity

Cooling Fan

Front I/O Ports

LED Indicators

Buttons

Expansion Slots

Dimensions (DxWxH)

Heavy Duty SGCC Sheet Metal

1U Chassis, Supports ATX / Micro ATX MB

Single 300W Flex ATX PSU

2 x 3.5" Internal HDD
1 x Slim Optical Drive

3 x 4028mm Fans

2 x USB Ports

Power on, HDD

Power, Reset

1 x Full Height/Half length Expansion Slot

440mm x 430mm x 44mm
