ASR108A

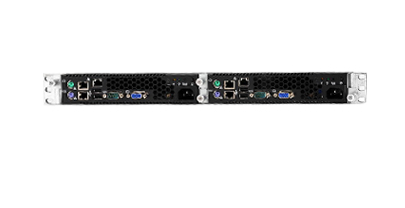

1U Chassis with 2 Compute Blades

Revolsys 1U High Density Back-To-Back

Dual Mini-ITX Compute Server

Rackmount Chassis Designed with

4 x 2.5" HDD Hot Swapable Bays

Features & Benefits

● 1U rackmount chassis supports mini

ITX motherboard

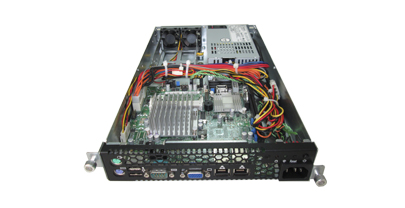

● Supports 2 computing blades

● back-to-back installation to meet 1U-4 blades high density servers requirement

● One standard 250W Flex ATX PSU in

each blade

Specifications

Material

Form Factor

Power Supply

Drive Capacity

Cooling Fan

LED Indicators

Buttons

Dimension(DxWxH)

Heavy Duty Metal

1U Chassis, Supports Mini-ITX MB

Default 250W Flex ATX PSU in Each Blade
300W PSU Optional

2 x 2.5" HDD in Each Blade

Default 2x 4020mm Fan, 2 x 4028mm Fan Optional

Power on, HDD

Power, Reset

Chassis 350 x 430 x 44mm ; Blade 348 x 206.8 x 43mm
