ASR108A-U
1U Chassis with 2 Compute Blades



Revolsys 1U High Density Back-To-Back

Dual Mini-ITX Compute Server

Rackmount Chassis Designed with

4 x 2.5" HDD Hotswapable Bays









Features & Benefits

● 1U rackmount chassis supports

   mini-ITX motherboard

● Supports 2 compute blades

● 1U standard 250W flex ATX power

   supply in each blade


● Supports 2 internal 2.5” HDDs or 1

   internal 3.5” HDD in each blade

● Supports back-to-back installation to meet    1U-4 blades high density server

   requirement (optional)


Specifications

Dimensions

Form Factor
Internal

Model Name

Type

Wattage

Front Control

Indicator

Fan

Material
Thickness

Type
351mm x 434mm x 44mm (D x W x H)
Mini-ITX (170mm x 170mm)

4 x 2.5” HDD (optional) / 2 x 3.5” HDD (optional)
Enhance ENP7025B

1U single

250W

Power on & off / System reset

Power status / HDD status
4 x Rear fan, 4020mm

SGCC

0.8mm / 1.0mm

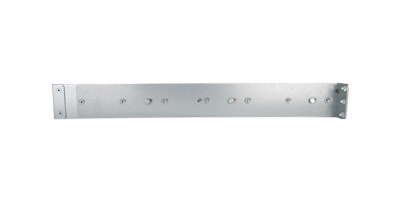

Back-to-back installation rail (optional)
