asr114A_revolsys

ASR114
1U 350mm Front MB I/O

Server Chassis

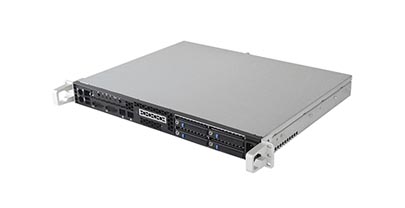

Revolsys 1U Half-Size Front I/O Access

Server Grade Rackmount Chassis with

4 x 2.5" HDD Hotswapable Bay

Features & Benefits

● Support standard micro ATX and Mini ITX MB (optimized design for Asus P7F-M MB)

● 3 high speed 4028mm axial fans with

anti-vibration Design + 1 4020mm fan

● Single 300W flex ATX PSU

● 350mm Depth

● Front MB I/O and AC power inlet

● 4 x 2.5” hot swappable SAS/SATA HDD

Specifications

Material

Form Factor

Power Supply

Drive Capacity

Cooling Fan

LED Indicators

Expansion Slots

Buttons

Dimensions (DxWxH)

Heavy Duty SGCC Sheet Metal

1U Chassis, Supports Micro ATX /Mini ITX MB

Single 300W Flex ATX PSU

4 x 2.5" Hot Swappable SAS/SATA2 HDD

3 x 4028 fans + 1 x 4020 fan

Power on, HDD

1 x low profile PCIE card optional

Power, Reset

350mm x 430mm x 44mm
