ASR301
Rackmount 3U server Chassis

Revolsys 3U Full-Size Server Grade

Rackmount Chassis with 16 x 3.5" HDD Hotswapable Bays & 7 Full Expansion Slots

Features & Benefits

● Supports ATX/CEB, EATX/EEB MB

● 3 x 120x120x25mm fans
● HDD tray with key lock optional

● Single or redundant PSU optional

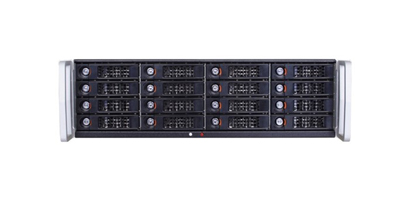

● 16 x 3.5” HS SAS/SATA2 HDD bays

Specifications

Material

Form Factor

Power Supply

Drive Capacity

Cooling Fan

Front I/O Ports

LED Indicators

Buttons

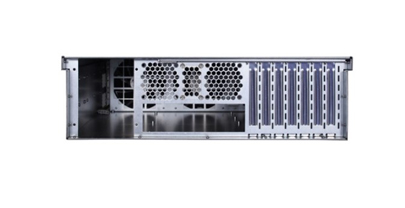

Expansion Slots

Dimensions (DxWxH)

Heavy Duty Metal

3U Chassis, Supports ATX/CEB, EATX/EEB MB

Single or Redundant PSU Optional

16 x 3.5" Hot Swappable SAS/SATA2 HDD

120 x 120 x 25mm 3 pcs

N/A

Power on, HDD, Fan Failure

Power, Reset, Mute

7 x Full Height Slots

690mm x 430.5mm x 130mm
