ASR405
4U Rackmount /Tower Chassis

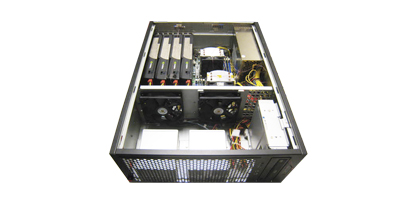

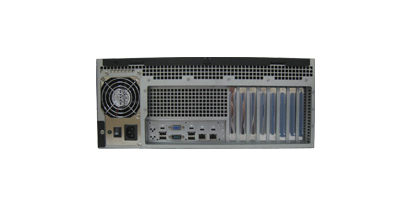

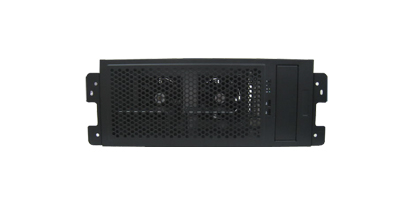

Revolsys 4U Server Grade Convertible Rackmount/Tower Chassis with 8

Expansion Slots or 4 x Double Width

Card Slots & Optimized Low Noise

Thermal Solution.

Features & Benefits

● 4U/Tower convertible chassis supports ATX/CEB, EATX/EEB MB

● Optimized Design with Tyan S7025 MB

for HPC/PSC Computer

● Optimized Thermal Solution - Low Noise
● 8 PCI Slots to Support 4 Double-Width

GPU Cards

Specifications

Material

Form Factor

Power Supply

Drive Capacity

Cooling Fan

Front I/O Ports

LED Indicators

Buttons

Expansion Slots

Dimensions (DxWxH)

Heavy Duty Metal

4U/Tower Chassis, Supports ATX/CEB, EATX/EEB MB

1200W, Supports 4 x 6-Pin GPU Card Power Connectors

1 x 5.25" drive bay, 4 x 3.5" internal HDD Bays

2 x 120mm Fans

2 x USB

Power on, HDD

Power, Reset

8 x Full Height Slots
Supports 4 High End Double Width GPU Cards

575mm x 428mm x 176mm
