asr455_revolsys

ASR455D

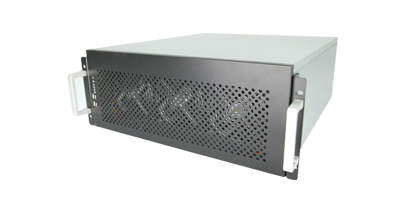

4U Chassis Supports 4 GPU Cards

Revolsys 4U Rackmount Chassis with

11 Full High & Full Size Expansion Slots Designed For Graphic Intensive & Data Streaming Intensive Application

Features & Benefits

● 4U rackmount chassis supports 4 GPU cards

● 1+1 redundant 1280W high efficiency power supply

● 120mm x 25mm PWM fans

● Supports 3 type drives

Specifications

Dimensions

Mother Board Model Name

External

Internal

Power Supply Model Name

Type

Wattage

Front Control

Indicator

Ports

Fan

Material

Thickness

Slot Opening

500mm x 440mm x 177mm (D x W x H)

X10DRG-Q, 386mm x 335mm (recommended)

1 x 5.25” drive (optional)

1 x 3.5” HDD (optional) / 2 x 2.5” HDD (optional)

Compuware CPR-1221-5M1

1+1 redundant

1280W

Power on & off / System reset

ower status / HDD status / 2 x LAN activity

2 x USB2.0

3 x Front fan, 120mm x 25mm, PWM

SGCC

0.8mm / 1.0mm / 1.2mm

11 x Full height & full length
